-FingerTip Pulse Oximeter

Part Number: UC-60E-BT

Type:

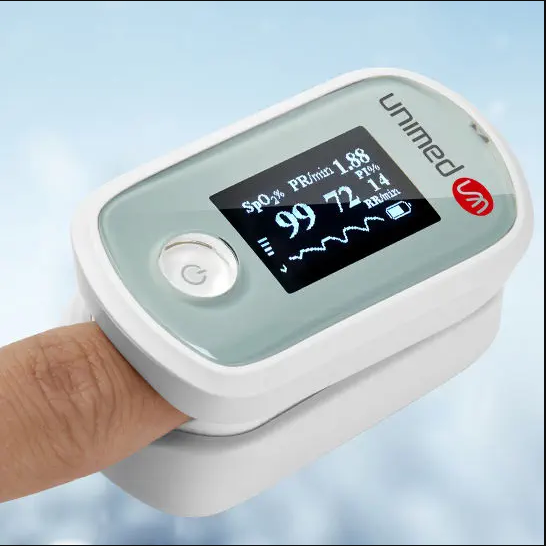

The Unimed Medical Oxygen Oximeter is a small and ease of use fingertip pulse oximeter with accurate measurement.

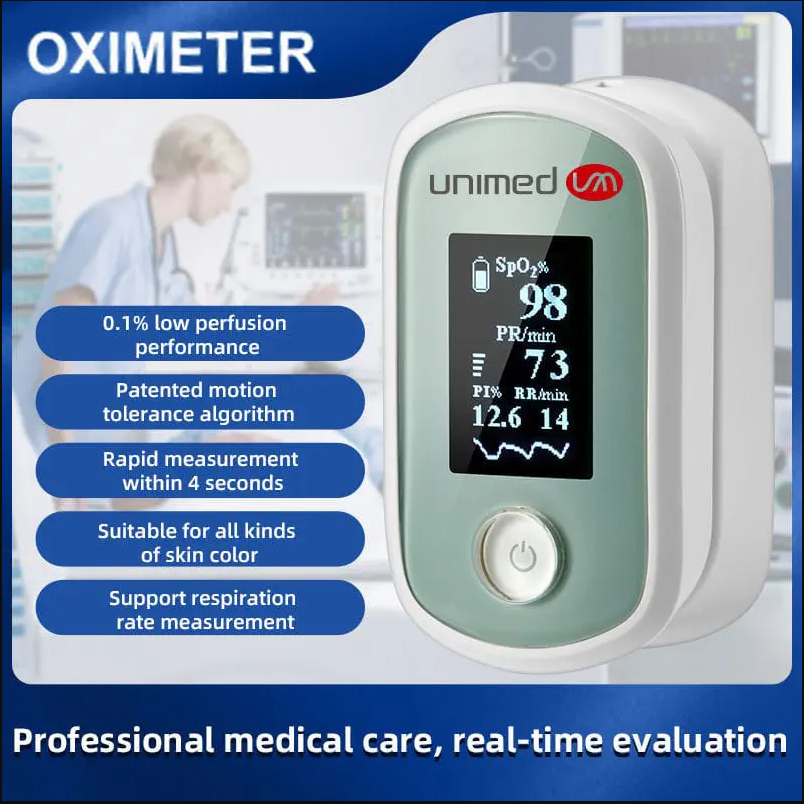

Product Features

1, Can be applied to various scenarios such as outdoors using in winter, available for high altitude area, patient with poor blood circulation;

2, Patented motion tolerance algorithm combined with excellent physiological signal identification, showing results within 4 seconds;

3, Have the same measurement performance for human with different kinds of skin color;

4, Support respiration rate measurement;

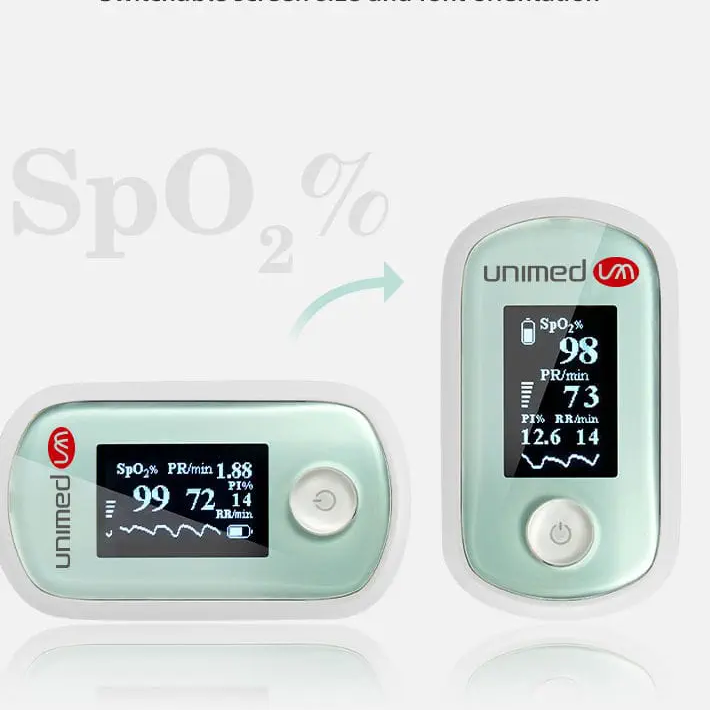

5, High-definition display made by OLED organic light-emitting diode with Switchable screen size and font orientation;

6, Intelligent probe off identification, power off after 8 seconds automatically without fingertip inserted in Intelligent low-power ICs, continuous monitoring > 24 hours;

7, Light blocking shape, suitable for special environments with no light or with strong lights. Insensitive to the impact of ambient lights;

8, The oximeter can be connected via Bluetooth, tracking the variation of blood oxygen at every moment;



Specification

Mode

UC-60E

Display type

OLED

Spo2 accuracy

70-100%, ±2%

Pulse rate accuracy

25-250BPM, ±2% or -s-2BPM

Low perfusion performance

0.1% 70-100% ±2%

Motion tolerance performance

motion with 1-5Hz and 0-3cm amplitude

Typical power consumption

<=30mA

Dimension

58*32*34mm

Net Weight

31g (without batteries)
